(7/9) EC’s Proxy Performance for Individual Treatments (Micro-Scale)

· Dirk Paessler · written at 428 ppm

Part 7 of 9 in the series MRV proxies for enhanced rock weathering: data from our two-year greenhouse experiment

On this page 8 sections

We recommend starting with the intro in Part 1 of this series.

The uncomfortable truth: the beautiful macro relationship breaks in many real-world-like cases

When we look at EC and TA per individual soil–feedstock combination, the dataset gets more honest. Some variations show a tight EC–TA relationship. Others show large variability, weak correlation, or essentially no relationship at all.

To evaluate whether EC tracks the treatment effect (TA increases relative to control), we computed Pearson r for each treatment pooled with its control. The logic is: we’re not just asking whether a soil has an EC–TA relationship, but whether the feedstock shifts the chemistry in a way that EC captures reliably.

Grid of 47 small scatter plots of leachate conductivity against alkalinity, one per soil and rock combination with its control, sorted by r from 0.95 down to -0.26

Figure 7: EC vs TA plots by treatment (with linear regressions), excluding settling phase and fertilizer event. Many treatments show strong EC–TA correlations (r > 0.7), but several show weak correlations.

A key pattern we observed: weak EC–TA correlation often means weak weathering signal

When looking at these plots, we made an observation that matters for MRV: All variations with low EC–TA correlation generally do not show signs of weathering or show very slow weathering — meaning there is no significant TA increase of treatment over control.

Whenever the formation of weathering products differentiates the treatment from the control (more cations and TA in leachate), r-values increase. Without that differentiation, the analysis becomes dominated by measurement noise and intra-replicate differences.

How often does the relationship break?

In 29 out of 47 combinations, the EC–TA r value is below 0.7. Across three quarters of soil treatments, EC remained a robust proxy across the tested feedstocks. But some soils showed inconsistent or poor correlations depending on feedstock (examples highlighted in the document include Bramstedt, Farmer 10, Farmer 4, Farmer 8 — especially with basanite).

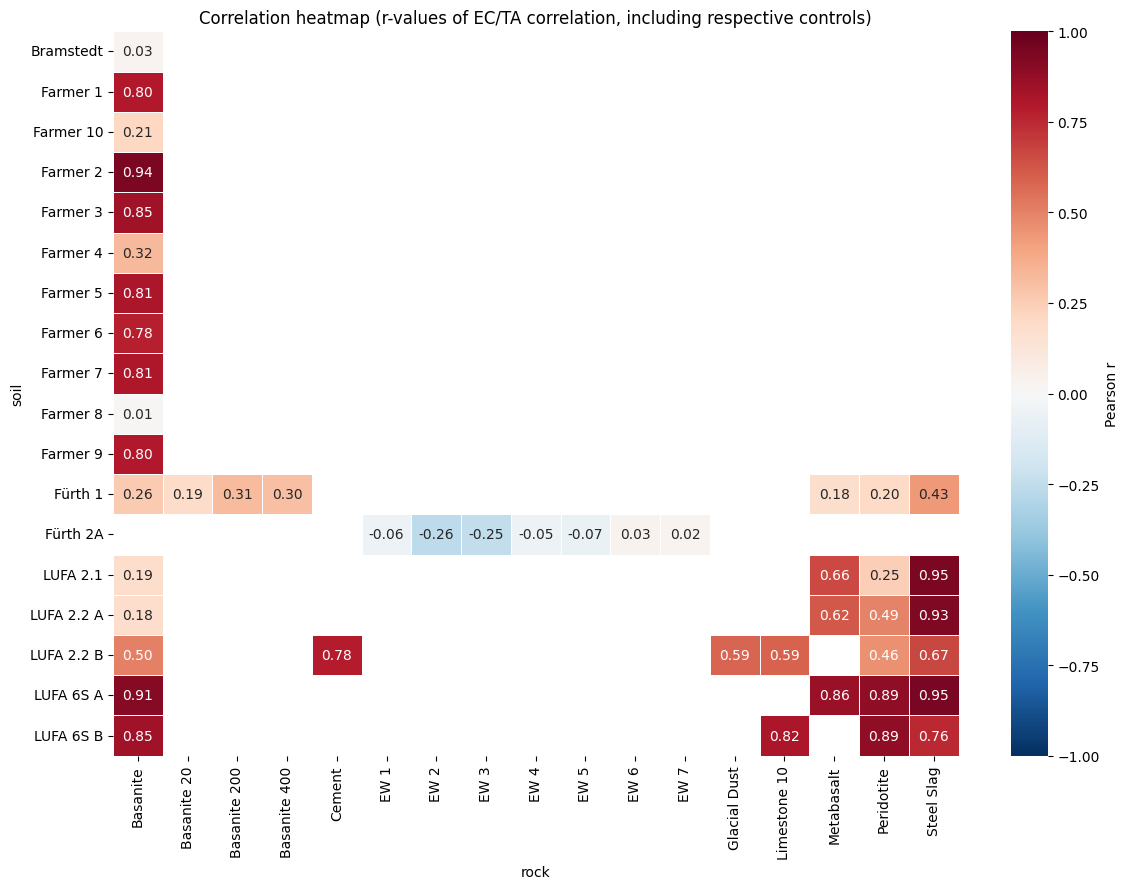

Heatmap of Pearson r for the EC to TA correlation by soil and rock; high (0.8 to 0.95) for steel slag on LUFA soils and basanite on most farmer soils, near zero for Fürth 2A, Bramstedt and Farmer 8

Figure 8: Heatmap of Pearson r for EC–TA by treatment (excluding settling phase and fertilizer event). Many treatments show r > 0.7, but several are weak.

Feedstock matters too: reactive materials behave better as proxies

Highly reactive steel slag showed consistently high EC–TA correlations across all 6 soils types where it was tested. Limestone was combined with 2 soils and showed r above 0.59 and 0.82. Less reactive silicate feedstocks showed mixed results. Basanite — the most frequently used feedstock in this experiment (17 soils) — ranged from essentially no correlation (r = 0.01) to very strong correlation (r = 0.95).

This is a practical MRV insight: proxies become easier when the signal is strong.

It’s not just EC: even “ideal” geochemical proxies break at micro-scale

The micro-scale breakdown was not unique to EC. Ca²⁺ and Mg²⁺ proxies also lost coherence with TA in specific soil–feedstock combinations. This reinforces a key MRV reality: even chemically “obvious” proxies can be distorted by soil processes (retention, exchange, secondary reactions). In other words: calibration is not optional.

The bridge between proxy quality and CDR performance

Figure 9 makes this link explicit:

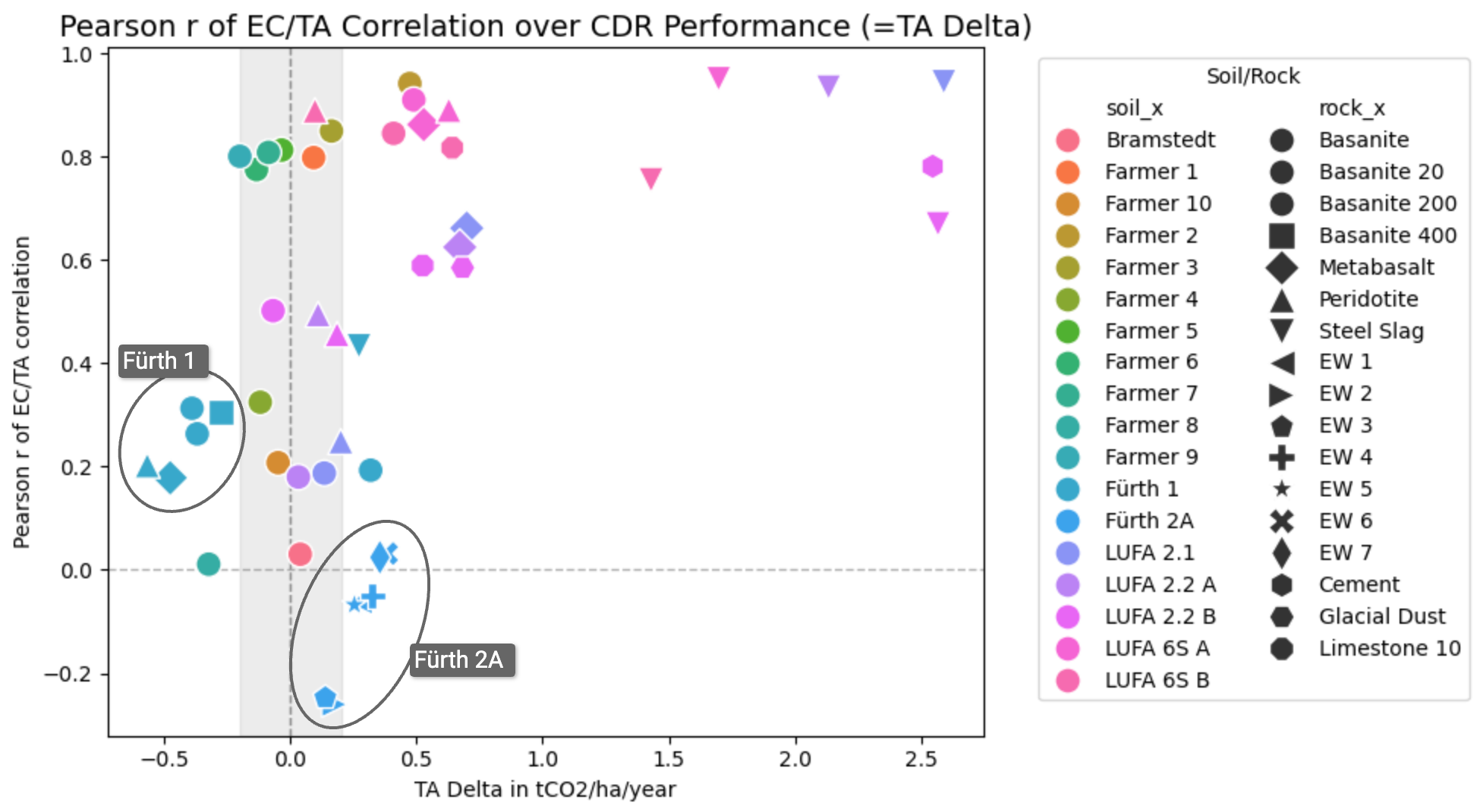

Scatter plot of Pearson r of the EC to TA correlation against TA delta per treatment; treatments above 0.5 tCO2/ha/year mostly show r above 0.6, the circled Fürth 1 and Fürth 2A groups sit below 0.4

Figure 9: Pearson r of EC–TA correlation vs CDR performance (ΔTA of treatment over control, tCO₂/ha/year). Gray area indicates 95% CI uncertainty of TA data.

In our experiments, a significantly positive CDR performance (TA > 0.2 tCO₂/ha/year) almost always comes with a good (r > 0.7) or very good (r > 0.8) EC–TA correlation. This suggests a practical interpretation: strong ERW performance tends to produce a strong, measurable proxy signal; weak ERW performance tends to leave proxies dominated by noise.

What this means for MRV of enhanced rock weathering in practice

1) MRV needs a “micro-scale mindset”

Macro correlations are useful, but MRV happens at the site level. The micro-scale results show that EC can be a reliable TA proxy in many cases — but not universally.

2) Site-specific calibration is mandatory, and re-calibration should be expected

A practical project implication is: you need an initial period with enough TA measurements to establish the EC–TA relationship for that specific soil/feedstock/crop/climate/management combination. Then you need continued checks because the relationship can shift with disturbances or evolving soil processes.
